The hot water immersion retort sterilizing equipment not only employs a proprietary fluid flow switch, which reduces temperature differences, but can also function as highly versatile sterilization equipment. By providing the hot water in the warming bath in advance, heating sterilization at high temperature is possible, with high temperature reached in a short time period, and hot water is recycled back into the warming bath after sterilization to provide low-steam operations.
Energy contained in the storage vessel allows extremely short come-up-time. Water envelops the containers – even temperature penetration into the product from all sides. Products can avoid air contact during the process, leading to zero cold air in Retort.
Optimized water circulation system guarantees homogenous temperature distribution. Counter pressure control steam in the storage vessel avoids pressure peaks and minimizes stress to packaging material. Gentle and fast cooling avoids thermal shock and post-sterilization cooking effect.

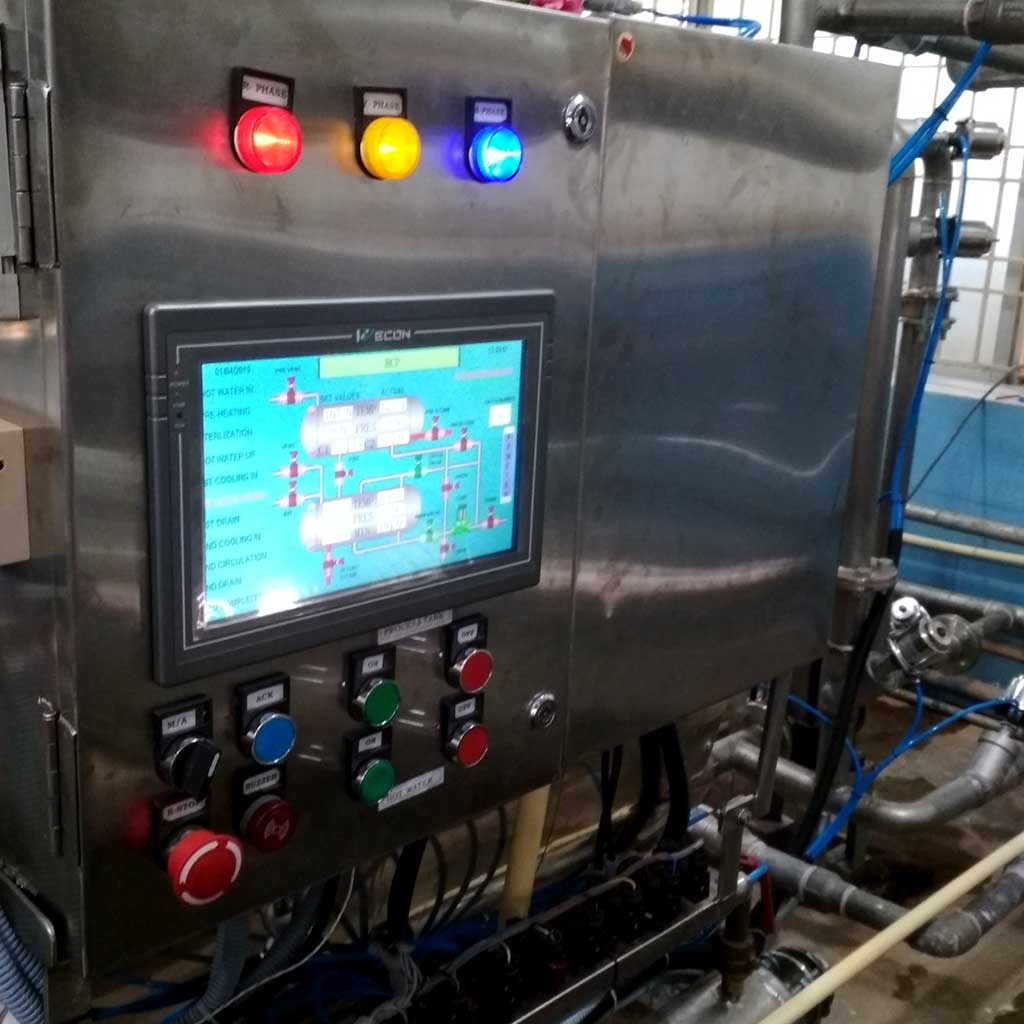

The water immersion retorts have a fully-automatic control system. The whole sterilization process is totally controlled by PLC, the temperature difference of thermal distribution is limited within ± 0.5°C. High temperature transferred swiftly into the product, ensure that the required lethality effect (F-value) is obtained as fast as possible.
Why Choose Our Water Immersion Retort
Our water immersion retort systems feature a proprietary fluid flow switch that reduces temperature differences and provides versatile sterilization capabilities. The hot water recycling system ensures efficient operations with extremely short come-up times and homogeneous temperature distribution throughout the process.
- Proprietary fluid flow switch technology
- Hot water recycling system
- PLC-based fully automatic control
- Zero cold air contact during process
